DUNNAGE AIR BAG

A cargo-securing and stabilising solution for transport.

Quick Enquiry

Product description

  • Secures the cargo and creates a bulkhead during transit.
  • Prevents the cargo from collapsing due to its shaking inside the vehicle, either vertically or horizontally, during transportation on ships, trains, or trucks.
  • It will be fitted into the gaps or voids between the cargo and then carefully filled with compressed air.
  • Made of different materials that can protect goods from various industries and in different environments in a safe and reliable manner.

MATERIAL DESCRIPTION

Dunnage bags basics

The basic construction of any dunnage bag is the combination of two major parts.

  • The IN-LINER (also called a bladder or balloon) holds the compressed air tight at high pressure levels.
  • The OUT-LINER (the cover) gives shape, stability, and enormous strength to the dunnage air bag. The strength of a Kraft paper air bag depends on the out-liner’s material thickness and number of layers.

Material

All our IN-LINER dunnage bags are made of a special extruded polyethylene (PE-mixture) with the guarantee of perfect tightness even under high pressure. For the OUT-LINER, we use layers of special extensible Kraft Paper or PP (Polypropylene) Woven Fabric with a very high tensile strength to match all applications.

Valve system

Valves allow you to fill up airbags much faster with specially designed air-filling devices. The 'Venturi' effect saves up to 50% of inflation time. However, our valves are compatible with most of the air-filling devices that are being used by industries.

Product Advantages

  • Effectively prevents the cargo from collapsing and moving during transportation.
  • Easy to operate, improves work efficiency, significantly reduces logistics costs, etc.
  • Shortens the time required to secure goods.
  • Supports weights up to 9.5 tonnes.
  • Complies with RoHS environmental protection requirements.
  • Suitable for use in damp conditions.
  • Quick inflation.

Product features

  • These bags act as shock absorbers during load shifting.
  • It is designed to secure cargo from different industries, such as pharmaceuticals, chemicals, automobiles, food, and every exporter.
  • It can sustain a load of up to 9.5 MT.
  • It is very easy to inflate and deflate.
  • High-quality paper and Woven Dunnage bags reduce damage to your cargo.
  • It acts as a cushion between two pallets.
  • It can sustain air for more than three months.
  • They come in different sizes, such as 900 x 1200 mm, 900 x 1500 mm, 900 x 1800 mm, 900 x 2100 mm, 1200 x 1800 mm, 1200 x 2100 mm, and 1200 x 2400 mm. We also manufacture bags as per customer requirements.
  • Customised dunnage bags are also manufactured.

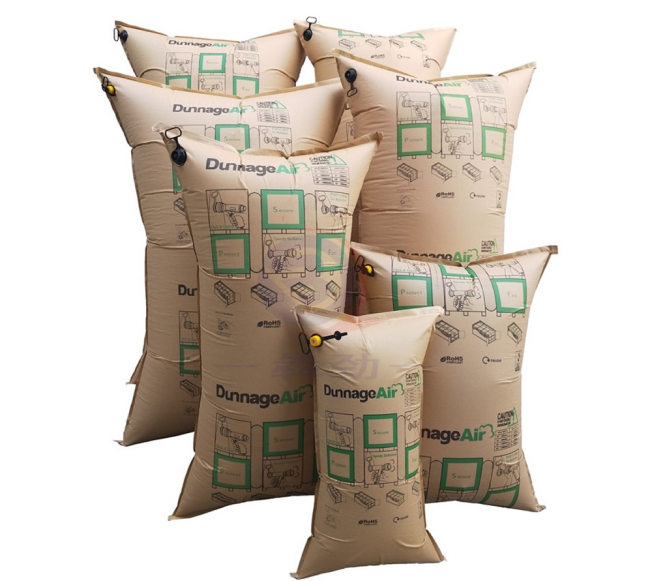

Kraft paper Dunnage air bag

Constructed of multiple layers of high-strength Kraft paper and an inner plastic lining that protects against loss of air pressure.

Features

  • It acts as a shock absorber.
  • Puncture-resistant.
  • Best quality material.
  • Leakproof and tested.
  • The paper used to manufacture these bags is food-grade, so it is used in the pharmaceutical and food industries.
  • The strength of our paper bag is higher as it is HDPE-laminated Kraft paper.

PP DUNNAGE AIR BAG

Features

  • Virgin-quality material.
  • Leakproof and tested.
  • Water resistant.
  • Puncture resistant.
  • High-quality material.
  • Manufactured with high-density laminated PP woven fabric.
  • The valves that we use for these bags are specially designed and manufactured by Krishca.
